Data Sheets for Neon Convertors
types: ►Micro 820  ►Mini 5020 K  ►Midi ECG 3050  ►Maxi ECG 5050  ►Maxi 9020 K

Micro 820

  1. Compliant with EN 60598-1 for LVT Directive
  2. Compliant with EN 61000-3-2, EN 55015 3rd ed, EN 61547 for EMC Directive
  3. 230v. input, with  Schuko type plug and a 1,5m cable
  4. Output with 1m cable type K (EN 50143). insulation of polyethylene and PVC. Diameter 4,5mm.
  5. Type B convertor according to IEC 61347-2-10 (this kind of neon convertor must be provided with ground fault protection)

Electrical data

Input:
Voltage
Current
Frequency
Power
Cos φ
Power factor
Volt 230 ac
Ampere 0,1 max
Hertz 50/60
Watt 10
1.
λ > 0.5

Output:
Voltage
Nominal load current
Short circuit current
Frequency
Volt 850 rms
mA 20
mA 25
Hertz 24.000

Performances

  1. Not compliant with external Flashers (electronic or mechanical)
  2. Not compliant with external Dimmers
  3. Suitable for lamps loaded with argon + mercury gas
  4. Resistant up to 40 c°

Loading Chart

Chart values in meters

Diameter

 8mm 10mm 12mm 15mm 18mm

Argon

 0,8 1,0 1,2 1,4 1,6

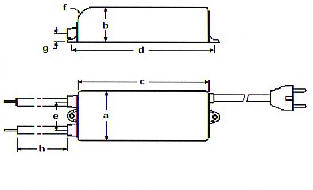

Dimensions

Dimensions for converter











  a b c d e f g h i weigth
Micro 48mm 30mm 90mm 99mm 25mm 14mm 6mm 1.000mm 1.500mm 220g



Mini 5020 K

  1. Available in black and white
  2. Available in the following versions: Standard, Dimmer, Flasher, Remote control
  3. Compliant with standard EN 61347-2-10 for the L.V. Directive
  4. Compliant with standard EN 61000-3-2, EN 55015 3rd ed., EN 61547 for the EMC Directive
  5. Type B converter in accordance with EN 61347-2-10 (protection against secnodary ground fault leakage is required)
  6. 230v. input, with Italian or Schuko plug and a 1,5m cable
  7. Output with 1m cable type K (as per EN 50143). Insulation in polyethylene and PVC. External diameter 4,5mm. Section 1mm2

Electrical data

Input:
Voltage
Current
Frequency
Power
Power factor
Volt 230
Ampere 0,2 maximum
Hertz 50/60
Watt 40 maximum
λ > 0.95

Output:
Voltage
Nominal load current
Short circuit current
Frequency
Volt 2.5-E-2.5KV rms maximum
mA 20
mA 25
Hertz 24.000

Performances

  1. In compliance with Flashers (0,5sec. delay at switching on)
  2. Not compliant with Dimmers
  3. Suitable both for lamps loaded with argon + mercury gas as well as with 100% neon gas (lack of "bubble" effect and mercury migration)
  4. Supplied with open circuit protection, ground fault protection and protection against overloading
  5. Maximum ambient temperature 40 c°
  6. Place 10mm far from metal surfaces

Indicative chart for maximum loading for electronic converters

Chart values in meters

Diameter

 6mm 8mm 10mm 12mm 15mm 18mm 20mm
Argon 5,0 5,8 6,5 7,1 7,8 8,5 9,0
Neon 3,8 4,4 4,8 5,0 5,5 6,0 6,5

Dimensions











  a b c d e f g h i Weigth
Mini 48mm 31mm 113mm 124mm 25mm 14mm 6mm 1.000mm 1.500mm 450g

Installation guideline

  1. To verify that the converter is not overloaded add to the lamps to be lit a 40 KΩ (11 watt) resistor. If tripping occurs, reduce the number of lamps to be feed. To check for presense of instalation problems, this test shall be performed when sign is finished.
  2. For high voltage connections use the cable connected to the transformer with no further additions.
  3. The converter must be, on all its' sides, 1 cm apart from the metal surface.
  4. The converters must be at least 2 cm far from one another

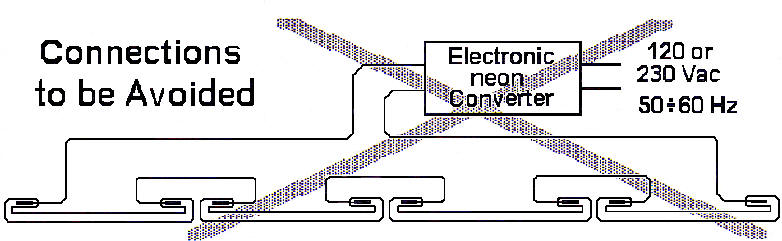

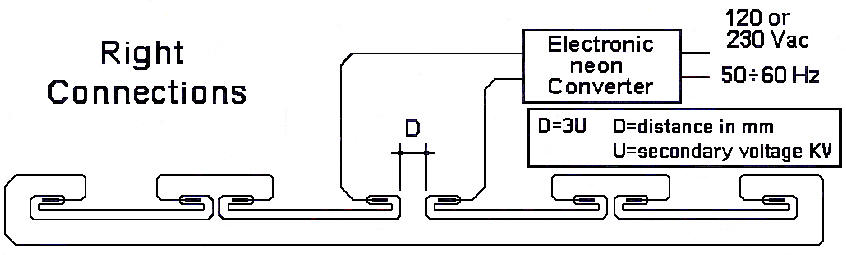

  5. The distance between the lamps and parts with different potential (other lamps, current conductors, parts connected to earth) shall be suitable to the voltages on site which, at the frequencies produced by the converter, can discharge easily through air and unsuitable insulation material.
  6. The material of the supports of the lamps must be allways insulating (EN 50107)
  7. To comply with the electromagnetic compatibility directive (EMC), from the output of the converter to the feeding supply, avoid placing the feeding cable near the neon lamps and/or the high voltage cables



Midi ECG 3050

  1. Available in black and white
  2. Available in the following versions: standard, Dimmer, Flasher, Remote Control and Remote Dimmer (0-10v)
  3. Compliant with standard EN 61347-2-10 for the L.V. Directive
  4. Compliant with standard EN 61000-3-2, EN 55015 3rd ed., EN 61547 for the EMC directive
  5. Type B converter in accordance with EN 61347-2-10 (protection against secondary ground fault leakage is required)
  6. 230v. input, with Italian or Schuko plug and a 1,5m cable
  7. Output with 1m cable type K (as per EN 50143). Insulation in polyethylene and PVC. External diameter 4,5mm. Section 1mm2

Electrical data

Input:
Voltage
Current
Frequency
Power
Power factor
Volt 200-250
Ampere 0,35 (at 230v)
Hertz 50/60
Watt 80
λ > 0.98

Output:
Voltage
Nominal load current
Short circuit current
Frequency
Volt 1,5-E-1.5KV rms maximum
mA 42
mA 50
Hertz 24.000

Performances

  1. Not compliant with Flashers
  2. Not compliant with Dimmers
  3. Suitable both for lamps loaded with argon + mercury gas as well as with 100% neon gas (lack of "bubble" effect and of mercury migration)
  4. Supplied with open circuit protection, ground fault protection and protection against overloading

Indicative chart of maximum loading for electronic converters

Chart values in meters

Diameter

 8mm 10mm 12mm 15mm 18mm 20mm 25mm
Argon 4,5 5,0 5,6 6,3 6,9 7,2 7,4
Neon 3,4 3,7 4,3 4,8 5,4 5,9 6,2

For every electrode couple 50cm must be calculated

Dimensions











  a b c d e f g h i Weigth
Midi 48mm 35mm 150mm 162mm 25mm 14mm 6mm 1.000mm 1.500mm 650g



Installation Guideline

  1. To verify that the converter is not overloaded add to the lamps to be lit a 25 KΩ (11 watt) resistor. If tripping occurs, reduce the number of lamps feed. To check for presence of installation problems, this test shall be performed when sign is finished.
  2. For high voltage connections use the cable connected to the transformer with no further additions.
  3. The converter must be, on all its sides, 1 cm apart from the metal surface
  4. The converters must be at least 2 cm far from on another
  5. The distance between the lamps and parts with different potential (other lamps, current conductors, parts connected to earth) shall be suitable to the voltages on site which, at the frequencies produced by the converter, can discharge easily through air and unsuitable insulating material
  6. The material of the supports of the lamps must be allways insulating (EN 50107)
  7. To comply with the electromagnetic compatibility directive (EMC), from the output of the converter to the feeding supply, avoid placing the feeding cable near the neon lamps and/or the high voltage cables



Maxi ECG 5050

  1. Available in black and white
  2. Available in the following versions: standard, Dimmer, Flasher, Remote Control and Remote Dimmer (0-10v)
  3. Compliant with standard EN 61347-2-10 for the L.V. Directive
  4. Compliant with standard EN 61000-3-2, EN 55015 3rd ed., EN 61547 for the EMC directive
  5. Type B converter in accordance with EN 61347-2-10 (protection against secondary ground fault leakage is required)
  6. 230v. input, with Italian or Schuko plug and a 1,5m cable
  7. Output with 1m cable type B (as per EN 50143). Insulation in silicon. External diameter 6,3mm. Section 1mm2

Electrical data

Input:
Voltage
Current
Frequency
Power
Power factor
Volt 200-250
Ampere 0,5 (at 230v)
Hertz 50/60
Watt 120 maximum
λ > 0.98

Output:
Voltage
Nominal load current
Short circuit current
Frequency
Volt 2,5-E-2.5KV rms maximum
mA 42
mA 50
Hertz 24.500

Performances

  1. Not compliant with Flashers
  2. Not compliant with Dimmers
  3. Suitable both for lamps loaded with argon + mercury gas as well as with 100% neon gas (lack of "bubble" effect and of mercury migration)
  4. Supplied with open circuit protection, ground fault protection and protection against overloading
  5. Maximum ambient temperature 40 c°
  6. Place 10mm far from metal surfaces

Indicative chart of maximum loading for electronic converters

Chart values in meters

Diameter

 8mm 10mm 12mm 15mm 18mm 20mm 25mm
Argon 7,2 8,0 8,6 9,3 10 11 12
Neon 5,2 5,6 6,0 6,5 6,8 7,3 7,8

For every electrode couple 50cm must be calculated



Dimensions











  a b c d e f g h i Weigth
Midi 59mm 46mm 163mm 178mm 35mm 21mm 10mm 1.000mm 1.500mm 1.100g

Installation Guideline

  1. To verify that the converter is not overloaded add to the lamps to be lit a 15 KΩ (11 watt) resistor. If tripping occurs, reduce the number of lamps feed. To check for presence of installation problems, this test shall be performed when sign is finished.
  2. For high voltage connections use the cable connected to the transformer with no further additions.
  3. The converter must be, on all its sides, 1 cm apart from the metal surface
  4. The converters must be at least 2 cm far from on another
  5. The distance between the lamps and parts with different potential (other lamps, current conductors, parts connected to earth) shall be suitable to the voltages on site which, at the frequencies produced by the converter, can discharge easily through air and unsuitable insulating material
  6. The material of the supports of the lamps must be allways insulating (EN 50107)
  7. To comply with the electromagnetic compatibility directive (EMC), from the output of the converter to the feeding supply, avoid placing the feeding cable near the neon lamps and/or the high voltage cables



Maxi 9020 K

Available in black and white versions

  1. Available in the following versions: Standard, Dimmer, Flasher and Remote control
  2. Compliant with standard EN 61347-2-10 for the L.V. Directive
  3. Compliant with standard EN 61000-3-2, EN 55015 3rd ed., EN 61547 for the EMC Directive
  4. Type B converter in accordance with IEC 61347-2-10 (protection against secondary ground fault leakage is required)
  5. 230v. input, with Italian or Schuko plug and a 1,5m cable.
  6. Output with 1m cable type B (as per EN 50143). Insulation in silicon. External diameter 6,3mm. Section 1mm2

Electrical data

Input:
Voltage
Current
Frequency
Power
Power factor
Volt 230
Ampere 0,35 maximum
Hertz
Watt 80 maximum
λ > 0,95

Output:
Voltage
Nominal load current
Short circuit current
Frequency
Volt 4,5-E-4.5KV rms maximum
mA 20
mA 25
Hertz 24.000

Performances

  1. In compliance with Flashers (0,5sec. dalay at switching on)
  2. Not compliant with Dimmers
  3. Suitable both for lamps loaded with argon + mercury gas as well as with 100% neon gas (lack of "bubble" effect and of mercury migration)
  4. Supplied with open circuit protection, ground fault protection and protection against overloading
  5. Maximum ambient temperature 40 c°
  6. Place 10mm far from metal surfaces

Indicative chart for maximum loading for electronic converters

Chart values in meters

Diameter

 6mm 8mm 10mm 12mm 15mm 18mm 20m
Argon 8,6 9,8 11 12 13 14 15
Neon 5,8 7,0 8,0 8,6 9,3 10 11

For every electrode couple 50cm must be calculated

Dimensions











  a b c d e f g h i Weigth
Maxi 59mm 46mm 163mm 178mm 35mm 21mm 10mm 1.000mm 1.500mm 1.100g

Installation guideline

  1. To verify that the converter is not overloaded add to the lamps to be lit a 40 KΩ (11 watt) resistor. If tripping occurs, reduce the number of lamps feed. To check for presence of installation problems, this test shall be performed when sign is finished.
  2. For high voltage connections use the cable connected to the transformer with no further additions.
  3. The converter must be, on all its sides, 1 cm apart from the metal surface
  4. The converters must be at least 2 cm far from on another
  5. The distance between the lamps and parts with different potential (other lamps, current conductors, parts connected to earth) shall be suitable to the voltages on site which, at the frequencies produced by the converter, can discharge easily through air and unsuitable insulating material
  6. The material of the supports of the lamps must be allways insulating (EN 50107)
  7. To comply with the electromagnetic compatibility directive (EMC), from the output of the converter to the feeding supply, avoid placing the feeding cable near the neon lamps and/or the high voltage cables
